Introduction of pure aluminum plate

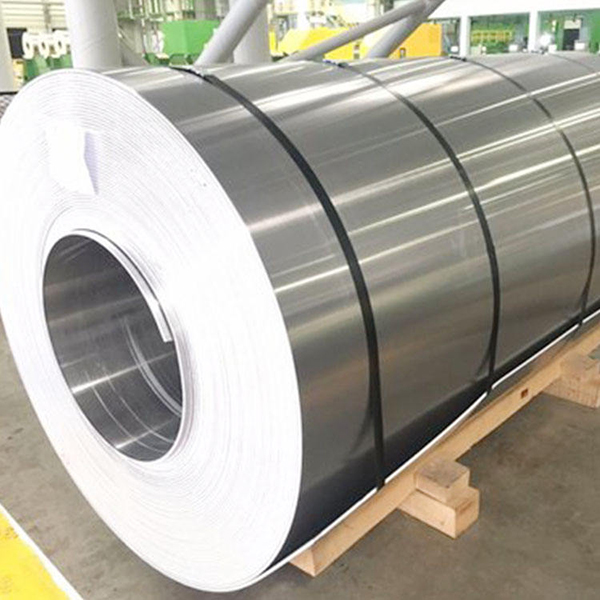

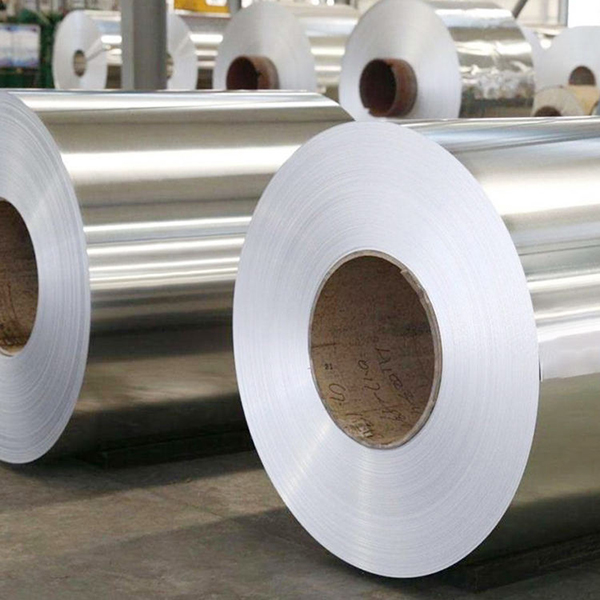

| Product | 5052/5083/5182/5754 Aluminum Coil |
| Temper | O,H12,H14,H16,H22,H24,H112,H116,H321 |
| Grade | 1000series：1050/1060/1070/1080/1100/1350 |
| 2000series：2011/2014/2017/2024 | |
| 3000series：3002/3003/3104/3204/3030 | |
| 5000series：5005/5025/5052/5040/5054/5056/5083/5152 | |
| 6000series：6101/6003/6061/6063/6020/6201/6262/6082 | |
| 7000series：7003/7005/7050/7075 | |
| 8000series：8011 | |
| Thickness | 0.5-6mm |
| Width | 100-2000mm |
| Length | C |
| Service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| Executive Standard | GB/DIN/ANSI/BS/JIS/ASTM/BS |
| Certificate | SGS/BV/MTC/IOS/CE |
| Delivery time | 7-15 days after deposit |
| Packaging Details | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)24-26CBM |
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM | |
| 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
Mechanical Properties
| Product | Tensile strength σb (MPa) | Yield strength σ0.2 (MPa) | Elongation δ5 (%) | Hardness（HB) |
| 5052-H32 | 210-260 | 130 | 5 | 61 |
| 5083-H112 | 275 | 125 | 10 | 75 |
| 5754-O | 190-240 | 80 | 12 | 38 |
| 5182-O | 175 | 80 | 15 | 70 |
Chemical Composition
| Product | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Ni | Single | Total |
| 5052 | 0.2-0.8 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | / | / | 0.05 | 0.15 |
| 5083 | 0.4 | 0.4 | 0.1 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | / | 0.05 | 0.15 |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | 0.2 | 0.15 | / | 0.05 | 0.15 |
| 5182 | 0.2 | 0.35 | 0.15 | 0.20-0.50 | 4.0-5.0 | 0.1 | 0.25 | 0.1 | / | 0.05 | 0.15 |
Application
Fuel tank, parts and components of various marine and Luyun equipment, cold stamping parts, sheet metal products and street lamp pillars; The material is used as rivet or welding rod.TV Tower, drilling equipment, transportation equipment, missile components, armor, etc.
