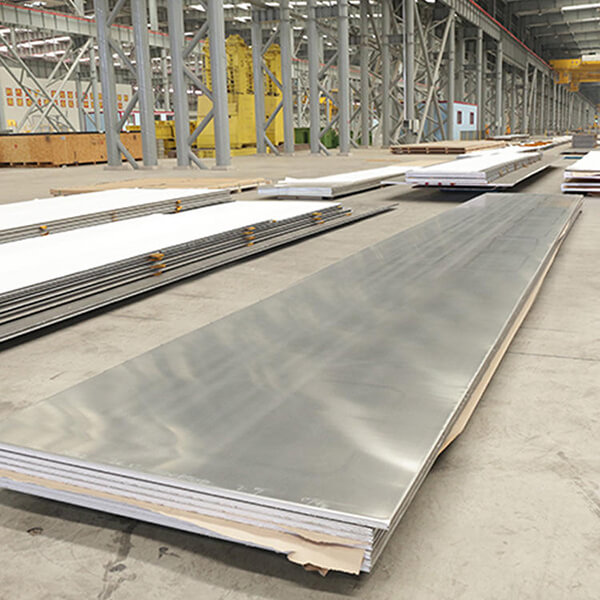

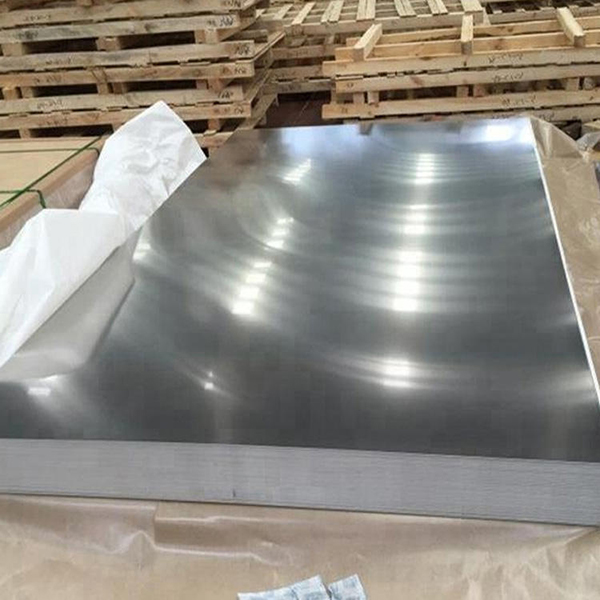

Aluminum plate 2A11 2A12 2A14 2024 2017 LY12

These aluminum plates belong to high-strength aluminum-copper alloy plates, with copper as the main alloying element. They offer excellent strength, fatigue resistance, and good machinability, though corrosion resistance is relatively lower. They are commonly used in aerospace, transportation, and high-strength industrial structural components.
These aluminum plates can be anodized, coated, or mechanically processed, making them suitable for aircraft structural parts, automotive chassis, industrial equipment, and high-strength structural components.

Application

Molds, precision parts, large frames, bridges, large shells, truck components, etc

It is used for alloy casting of structural parts such as aircraft wall panel, front beam girder, joint, strut and landing gear, beauty instrument, notebook shell, etc.

Introduction of aluminum plate

Product	2A11/2A12/2A14/2024/2017/LY12 Aluminum plate
Temper	O/T3/ T4/T351/H112
Grade	1000series：1050/1060/1070/1080/1100/1350
	2000series：2011/2014/2017/2024
	3000series：3002/3003/3104/3204/3030
	5000series：5005/5025/5052/5040/5054/5056/5083/5152
	6000series：6101/6003/6061/6063/6020/6201/6262/6082
	7000series：7003/7005/7050/7075
	8000series：8011
Thickness	0.3-300mm
Width	500-2600mm
Length	500-10000mm
Service	Perforated, Cutting special size, Doing flatness, Surface treatment,etc
Executive Standard	GB/DIN/ANSI/BS/JIS/ASTM/BS
Certificate	SGS/BV/MTC/IOS/CE
Delivery time	7-15 days after deposit
Container Info	20ft GP: L5.8m * W2.13m * H2.18m , about 27 CBM, Loading Max.26 Tons
	40ft GP: L11.8m * W2.13m * H2.18m, about 54 CBM, Loading Max.26 Tons
	40ft HG: L11.8m * W2.13m * H2.72m, about 68 CBM, Loading Max.26 Tons

Mechanical Properties

Product	Tensile strength σb (MPa)	Yield strength σ0.2 (MPa)	Elongation δ5 (%)	Hardness（HB)
2A11-T4	370	215	12	120
2A12-T4	425	275	12	120
2A14-T4	440	280	10	120
2024-T4	425	275	14	120
2017-T4	390	245	13	115
LY12-T4	425	275	12	120

Chemical Composition

Product	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Ni	Others
2A11	0.7	0.7	3.8-4.8	0.4-0.8	0.4-0.8	/	0.3	0.15	0.1	Single	Total
										0.05	0.1
2A12	0.5	0.5	3.8-4.9	0.3-0.9	1.2-1.8	/	0.3	0.15	/	0.03	/
2A14	0.6-1.2	0.7	3.9-4.8	0.4-1.0	0.4-0.8	/	0.3	0.15	0.1	0.05	0.15
2024	0.5	0.5	3.8-4.9	0.3-0.9	1.2-1.8	0.1	0.25	0.15	/	0.05	0.15
2017	0.2-0.8	0.7	3.5-4.5	0.4-1.0	0.4-0.8	0.1	0.25	0.15	/	0.05	0.15
LY12	0.5	0.5	3.8-4.9	0.3-0.9	1.2-1.8	/	0.3	0.15	/	0.05	0.15
