Carbon Steel Hot Rolled Coil

Carbon steel hot rolled coil is produced by continuously rolling steel billets at a temperature above the recrystallization point, resulting in high strength and good ductility. Hot rolled coils have a relatively rough surface but offer a wide thickness range, making them suitable for various industrial applications.
Carbon steel hot rolled coils are widely used in construction, machinery manufacturing, automotive parts, pipe production, and shipbuilding. They serve as the basic material for making steel sheets, profiles, pipes, and structural components.

Carbon Steel Hot Rolled Coil

Carbon steel hot rolled coil is produced by continuously rolling steel billets at a temperature above the recrystallization point, resulting in high strength and good ductility. Hot rolled coils have a relatively rough surface but offer a wide thickness range, making them suitable for various industrial applications.

Carbon steel hot rolled coils are widely used in construction, machinery manufacturing, automotive parts, pipe production, and shipbuilding. They serve as the basic material for making steel sheets, profiles, pipes, and structural components.

Key Advantages:

High strength with good ductility
Can be processed into sheets, profiles, and pipes
Cost-effective, suitable for large-scale production
Widely applied in construction, machinery, automotive, and shipbuilding industries

Product Specification and Steel Grade (For Reference)

Application	JIS	ASTM	SAE
Commercial Quality	G3131 SPHC	A569	1006~1025
		A635
		A659
		A1011 CS Type A, B, C
Drawing Quality	G3131 SPHD	-	1006-1010
Deep Drawing Quality	G3131 SPHE	A622	1006~1010
Deep Drawing Quality	G3131 SPHE	A1011 DS Type A, B	1006~1010
General Structure	G3101 SS330	A36	1010~1025
(T.S. < 490 N/mm₂)	SS400	A283 GR.C
	G3106 SM400A	A570 GR.30~40
	G3132 SPHT1	A1001 SS GR.30~40
	SPHT2
	SPHT3
General Structure	G3101 SS490	A570 GR.45~50	J1392 050X
(T.S. ≧ 490 N/mm₂)	G3106 SM490A	A607 GR.45~70
	SM490A	A1011 SS GR.45, 50
	SM490YA	A1011 HSLAS GR.45~70
	G3132 SPH4

Available Size

Carbon Steel Hot Rolled sheet
	Thickness (mm)	Mill Edge
		Width (mm)
Sheet	1.50~6.50	720~1860
	6.51~10.00	850~1500

Manufacturing Process

Application

Carbon hot-rolled steel plates are used in the construction sector and for welding such as cantilever cranes, construction equipment, railway tracks, agricultural equipment and heavy vehicle frames.By varying the content of carbon steel, different qualities of steel can be produced.In general, the higher the carbon content in steel, the more brittle, the harder, and the less tough the steel is.

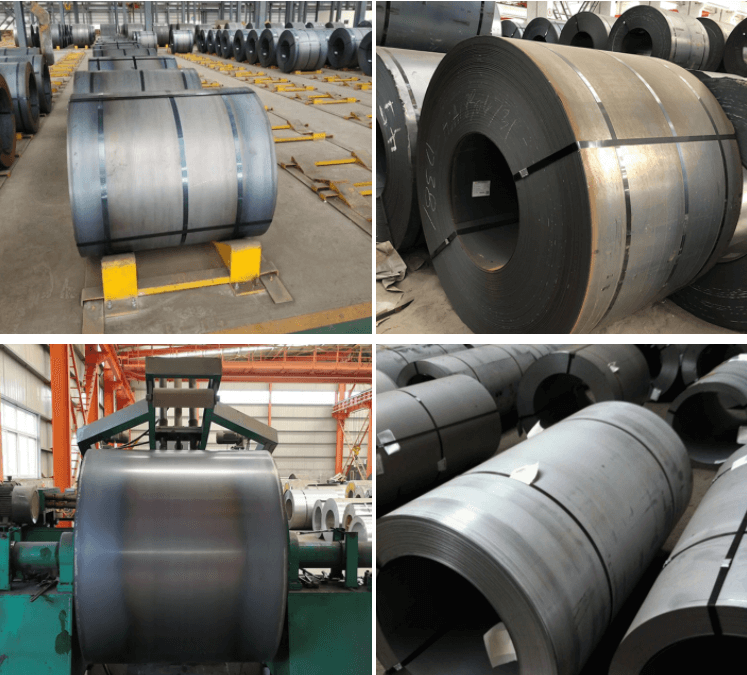

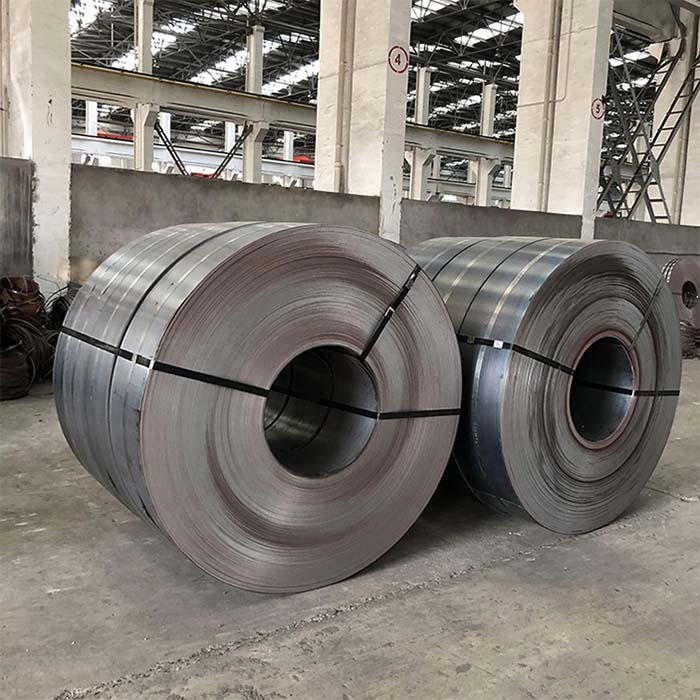

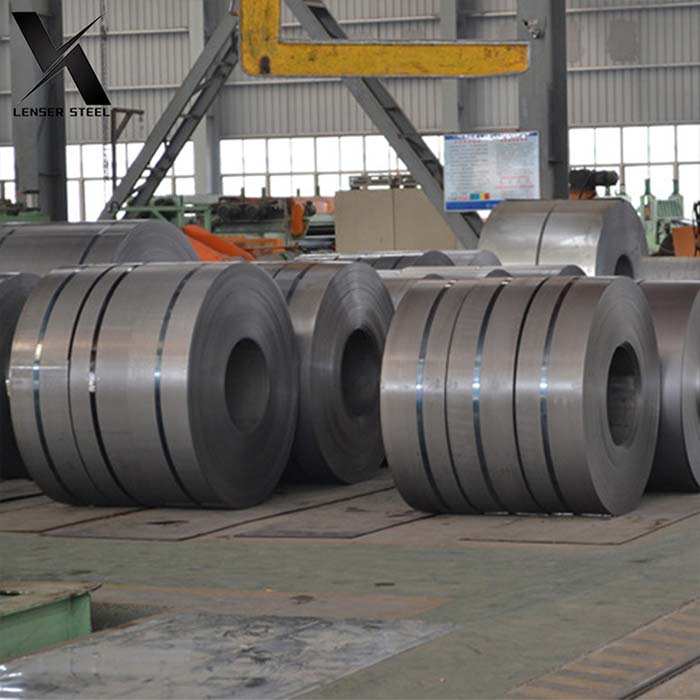

Product Display
