POSCO is prominent distributor, supplier and exporter of Inconel 625 Sheets & Plates. We are offering a wide range of these Inconel 625 Sheets & Plates in various sizes, shapes and also as per the client’s requirement and specifications. These Inconel 625 Sheets & Plates is a combined mixture of Molybdenum, Columbium, Chromium and Nickel elements. Inconel 625 Sheets & Plates has extra exceptional fatigue power and stress-corrosion cracking resistance to chloride ions. These Inconel 625 Plates is particularly beneficial for a situation where oxidation resistance and avoidance of pitting is needed.We, Goodluck Metal Corporation, is manufacturing Inconel 625 Sheets & Plates under a wide range of atmosphere and pressures, and the primary reason is for its full acceptance and necessity in the chemical processing field. The mixture of Nickel Alloy in Inconel 625 Sheets & Plates often used in Jet engine exhaust systems, Aircraft ducting systems, Engine thrust and reverser systems.

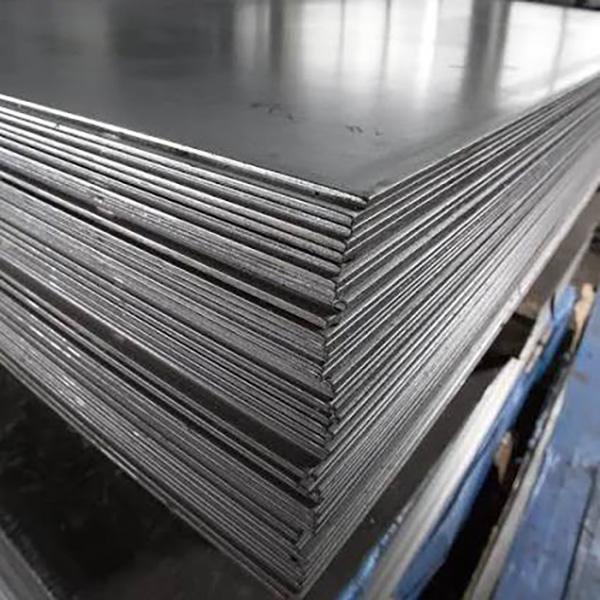

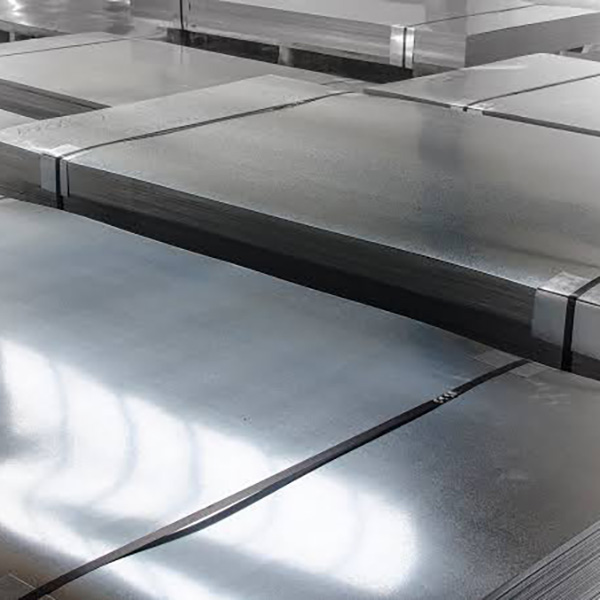

Inconel 625 Sheets & Plates
We, POSCO , are providing extra excellent benefits and features that will help the customer and market to fulfil their needs and want under very affordable price and providing low maintenance cost. Some extra benefits are heat and cold resistance, chloride stress resistance, corrosion cracking resistance, salt, freshwater and alkaline chemical resistance, stability during welding, scaling and oxidization resistance and many more benefits.
We are manufacturing these Inconel N06625 Sheets & Plates by using an outstanding quality of raw materials. We are having a huge team of experts who are looking for manufacturing best products that will fulfil the needs, wants and demand and satisfy the clients. We are always following international and national standard and specifications to maintain the quality standard.
These Inconel 2.4856 Sheets & Plates have numerous usages in many applications of industry such as Sour gas production tubes, Chemical Processing, Aerospace equipment, Chimney Linings, Nuclear waste reprocessing equipment, Jet Engine exhaust systems, Motor racing exhaust systems and many more sectors.
Before delivering, we are performing several tests to check the efficiency and strength of Inconel 625 Sheets & Plates and then packaging it with standard packaging material and providing fast delivery to our clients.
Inconel 625 Plate and Sheet Specifications
| Specifications | ASTM B443 / ASME SB443, AMS 5599, AMS 5869 |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6250mm, etc |
| Thickness | 0.3 mm to 120 mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
Inconel 625 Plate & Sheet Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
Inconel 625 Plate & Sheet Chemical Composition
Grade C Mn Si S Cu Fe Ni Cr Inconel 625 0.10 max 0.50 max 0.50 max 0.015 max - 5.0 max 58.0 min 20.0 - 23.0
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.50%
